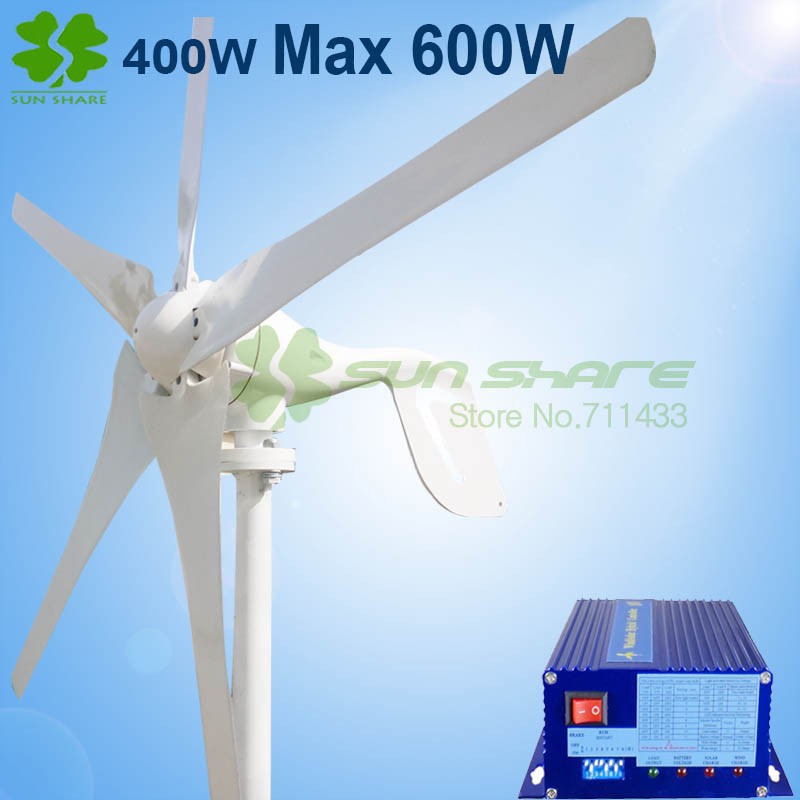

400w wind turbine Max power 600w 5 blades small wind mill low start up wind generator + 700w wind solar hybrid controller

Available on AliExpress

Description



wind generator +hybrid controller 600w.jpg2
Wind turbine generator 600w max wind
generation 5blades , low start up wind speed , used for land& marine, Combine with wind solar hybrid controller.
Please leave a message about whether you need DC12V or DC24V?
Wind is in nature inexhaustible energy, but also not pollute the environment is one of the energy. Changeing the wind energy to power energy is used in industy production and normal life,which is human ideal energy acquisition modes.This Wind Turbine Generator includes a high efficiency motor to get the most from the turbine.This turbine comes with one of the best warranties in the industry.
This wind generator turbine is small yet versatile turbine and can produce up to 600 Watts Max.  It features a special coating that protects the generator, making it suitable for locations. The turbine begins to supply power in wind speeds as low as 15m/s

Model Name

SSF-400

Max power

600w

Rated power

400w

Rated DC voltage

DC 12V/24V

Rated current

33A/17A

Rated speed

900r/m

Number of blade

5pcs

Starting wind speed

2.5m/s

Cut-in wind speed

3.5m/s

Rated wind speed

12.5m/s

Engine

Three-phase permanent magnet generator

Rotor diameter

1230mm

Blade material

Carbon fiber

Output line anti-winding device

Overall three-phase commutator

Over-speed wind protection

Tip stall protection + turned protection + Electromagnetic brake

Life span

15 years

Equipment surface protection

Aluminum oxide + plastic coating

N.W

8.5Kg

Package dimension

68cm*36cm*21cm

wind turbine 5 blades small wind mill low start up wind generator





wind turbine 5 blades small wind mill low start up wind generator







wind turbine 5 blades small wind mill low start up wind generator

wind turbine 5 blades small wind mill low start up wind generator



wind turbine 5 blades small wind mill low start up wind generator





wind turbine 5 blades small wind mill low start up wind generator



wind turbine 5 blades small wind mill low start up wind generator



wind turbine 5 blades small wind mill low start up wind generator



description2

Product Description

  • Series controller
  • Voltage regulation
  • Automatic detection of voltage
  • PWM control
  • Multistage charging technology
  • Current compensated load disconnection
  • Automatic load reconnection
  • Temperature compensation

Electronic protection functions

  • Overcharge protection
  • Deep discharge protection
  • Reverse polarity protection of load, module and battery
  • Automatic electronic fuse
  • Short circuit protection of load and module
  • Overvoltage protection at module input
  • Open circuit protection without battery
  • Reverse current protection at night
  • Wind-turbine auto brake and brake switch for manual operation
  • Battery overvoltage shutdown

Installation step

wind turbine 5 blades small wind mill low start up wind generator



Parameter

Wind turbine power

400 W 12V/24V

Solar rated power

200W/12V 300W/24V

Rated Battery Voltage

12 V/24V

Wind turbine power Max.

600 W

Wind turbine current Max.

40 A

Over-charge Voltage

14.5V/12V; X2/24V

Over-discharge Voltage

10.8 V/12V; X2/24V

Method of control

PWM

Free-load lost power

less than 6 mA

Voltage lost on charging

less than 0.26V

Voltage lost on discharge

less than 0.15V

Display

* Red-LED show battery voltage status

* Night-LED show device DC power output

* Charge-LED show system charging status

Protection Mode

Solar cells reverse charging, solar cells anti-reverse connection, battery over-charging, battery over-discharge, battery anti-reverse connection, over-load, Load anti-reverse connection, wind-turbine current limited, wind-turbine rotation limited, manual brake switch equipped.

ambient temperature

-25 – +55

humidity

<85% RH without condensation

Dimension

190mm x 150mm x 65mm

Weight (kgs)

1.2 kg

Above is our standard model designed. Welcome your special requirement as necessary, we would like to do re-design and configuration adjust for your expectation accordingly .



wind turbine 5 blades small wind mill low start up wind generator

wind turbine 5 blades small wind mill low start up wind generator

wind turbine 5 blades small wind mill low start up wind generator

wind turbine 5 blades small wind mill low start up wind generator

wind turbine 5 blades small wind mill low start up wind generator











How to use it

wind turbine 5 blades small wind mill low start up wind generator



Project



wind turbine 5 blades small wind mill low start up wind generator





wind turbine 5 blades small wind mill low start up wind generator



wind turbine 5 blades small wind mill low start up wind generator



wind turbine 5 blades small wind mill low start up wind generator



wind turbine 5 blades small wind mill low start up wind generator



wind turbine 5 blades small wind mill low start up wind generator



wind turbine 5 blades small wind mill low start up wind generator



packing list



1piece wind turbine (5 blades)

1piece wind solar hybrid controller





wind turbine 5 blades small wind mill low start up wind generator



wind turbine 5 blades small wind mill low start up wind generator

Remark: Every  buyer should in charge of the import tax fee, so pls tell us the value should be written in invoice
